DripNet PC AS Anti-siphon root protection

DripNet PC™ AS XR

The dripperline optimised for subsurface drip irrigation with active protection against root intrusion and clogging and a perfect cost-performance ratio

DripNet PC™ AS XR integral pressure compensated self-cleaning drippers combine Anti-Siphon technology with extra root intrusion resistance (AS XR) to deliver long-lasting uniform subsurface irrigation in any topography.

Embedded copper oxide for long-lasting protection against root intrusion
Anti-Siphon mechanism prevents dirt suction and reduces clogging risk during system draining

Expected Product Lifespan

Up to 15 years

Topography

Hilly Topography
Flat Topography

Dripper Type

Integral

Pressure Compensation

dripperline wall-thickness

Medium wall
Thin wall

Dripper special features

AS XR (Xtra-Root protection)

Surface

SDI (subsurface drip irrigation)

Crop type

Orchards
Field crops

Why DripNet PC™ AS XR?

SUPERB ROI: Achieve excellent subsurface drip irrigation performance for your budget - without compromising a drop on reliability or crop uniformity.

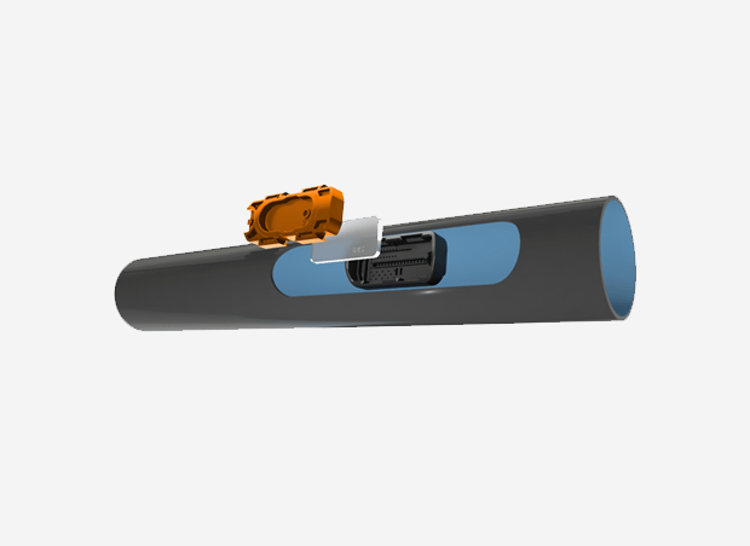

Double-action root protection: Physical root barrier protects against root intrusion into the dripper while innovative non-migrating copper oxide resin mixed into the dripper cover inhibits root growth within the dripper labyrinth throughout its lifespan.
System-draining protection: Anti-Siphon mechanism prevents suction of sand, dirt and contaminants into the dripperline during system draining - eliminating the risk of clogging, or partial clogging.
Uniform flow in any topography: Wide effective filtration area and short water passage, plus self-cleaning technology, assures 100% uniformity of water and nutrient distribution in long laterals and sloping or uneven terrain.
Never clogs: Self-flushing system continuously flushes out debris to ensure optimal dripper performance and increased filtration efficiency even with harsh water.
Perfect fit for your needs: 7 different flow rates, (0.4 up to 3.8 L/H) and wide range of pipe diameters can address any condition or application.

Specifications

Variety of flow rates: 7 different flow rates (0.4, 0.6, 1.0, 1.6, 2.0, 3.0, 3.8 L/H) can address any condition or application
Wide range of pipe diameters: 12.0 mm - 23.0 mm
Wall thickness: 0.9 mm, 1.0 mm, 1.2 mm
Pressure compensating range: 0.4 - 5.0 bar
Pressure-compensating range: 0.25, 0.40, 0.60 - 2.5, 3.0, 3.5 bar (according to flow rate model)
Superb UV and chemical resistance
