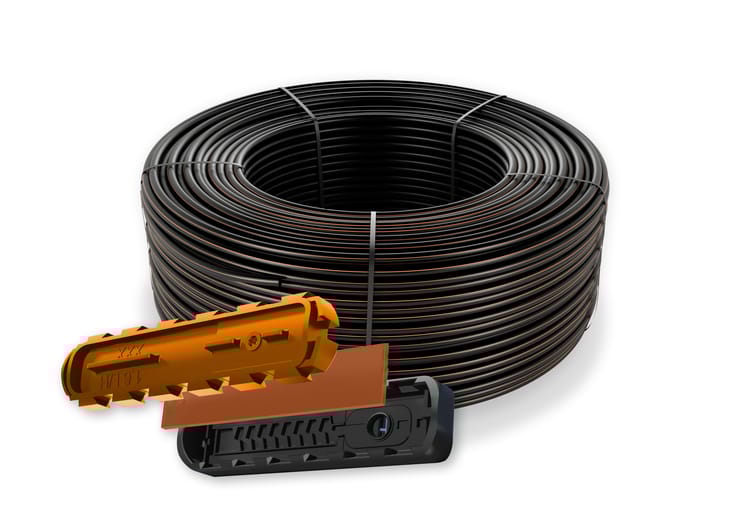

UniRam™ AS XR

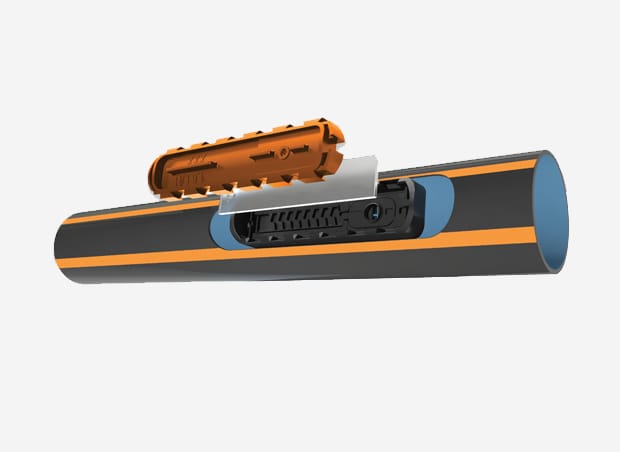

The drip line made for subsurface drip irrigation, With dynamic root protection and dirt-suction prevention mechanism.

Featuring an embedded copper-oxide additive and an Anti-Siphon mechanism with extra protection against root intrusion and clogging, UniRam™ ASXR pressure compensated drip line deliver long-lasting uniform performance in any topography even under the most aggressive root intrusion hazard.

Prevents root intrusion and inhibits root growth throughout the life of dripper
Anti-Siphon mechanism blocks external contaminants being drawn into the dripper
Anti-clogging and self-flushing system reduces risk of clogging.

Expected Product Lifespan

15 to 25 Years

Topography

Hilly Topography
Flat Topography

Dripper Type

Integral

Pressure Compensation

dripperline wall-thickness

Heavy wall

Dripper special features

Anti Syphon (AS)

Surface

SDI (subsurface drip irrigation)

Crop type

Field crops
Orchards
Protected crops

Why UniRam™ ASXR?

Long-lasting root protection: Innovative non-migrating copper oxide resin mixed into the dripper cover inhibits root growth within the dripper labyrinth throughout its lifespan.
Dirt-suction prevention: Anti-Siphon mechanism prevents suction of dirt and contaminants into the dripline during system draining - eliminating the risk of clogging, or partial clogging.
Uniform flow rates for years: The industry’s biggest filtration area and water passage, plus self-cleaning technology assures 100% uniformity of water and nutrient distribution in long laterals and in any topography.
Never clogs: Self-flushing system continuously flushes out debris to ensure optimal dripper performance and increased filtration efficiency with harsh water.
Built to last: Ultra-durable, UV-stable lines are built to resist damage from heavy machinery, soil insects, sun exposure and recoiling.

Specifications

Variety of flow rates: 5 different flow rates (0.7, 1.0, 1.6, 2.3, 3.5 L/H) can address any condition or application
Wide range of pipe diameters: 16.0 - 23.0 mm
Wall thickness: 0.9mm, 1.0mm, 1.2mm
Superb UV and chemical resistance

Downloads

Product sheets

UniRam AS XR product sheet (PDF)

Technical information

UniRam AS XR technical product sheet (PDF)

Other Uniram™ models

Uniram™ AS

Deciduous plantation and tree irrigation and permanent (15 to 25 Years)
subsurface row crops

Uniram™ CNL

Greenhouses, deciduous plantations and tree irrigation; permanent (15 to 25 Years) with Anti Drain mechanism.

Uniram™ HCNL

Greenhouses and precise irrigation applications; permanent (15 to 25 Years) subsurface row crops; deciduous plantations and tree irrigation with Anti Drain mechanism in complex topographies.
