button and pot dripper

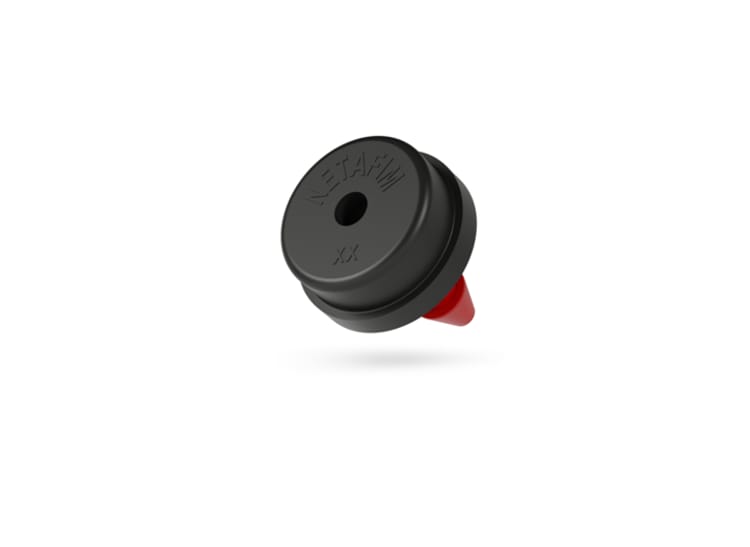

Button & Pot dripper

On line non-pressure-compensated dripper for applications such as greenhouses, nurseries, garden pots

Why Button & Pot dripper?

TurboNet™- Labyrinth ensures wide water passages, large deep and wide cross-section that improves clogging resistance.
Flexible location- Dripper can be positioned exactly where required. The number of drippers can be increased to increase the water quantities applied aimed at meeting the tree’s growth rate requirements. Allows the installation of “spider assembly”, splitting the drip supply to a number of drip outlets.

Specifications

Working pressure up to 2.0 bar.
Recommended filtration: 130 micron / 120 mesh. Filtration method selected based on the kind and concentration of dirt particles contained in the water. Wherever sand exceeding 2 ppm exists in the water, a Hydrocyclone shall be installed before the main filter. Where sand/silt/clay solids exceed 100 ppm, pretreatment shall be applied following Netafim expert instructions.
TurboNet™ labyrinth with large water passage.
Insertable into thick wall blank PE pipes(0.90, 1.00, 1.20 mm).
Injected dripper, very low CV.
The Pot model to be threaded into a 3*5 mm micro-tube.

Downloads

PRODUCT SHEET

PRODUCT SHEET

Button and Pot drippers product sheet (PDF)

TECHNICAL INFORMATION

TECHNICAL INFORMATION

Button and Pot drippers technical product sheet (PDF)
