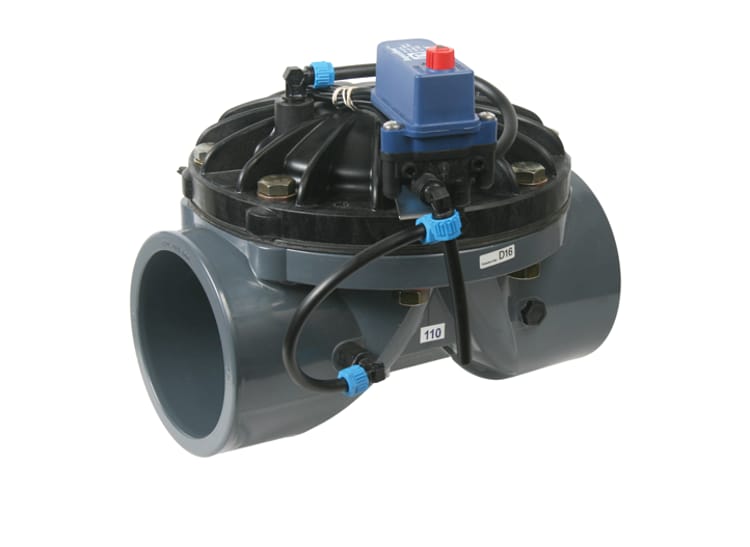

Dorot series 90 PVC control valves–Rust resistant, robust and trusted by millions

Why millions of growers use our valves?

As the world leaders in irrigation, we know that controlling high pressure flow and protecting your irrigation system is key to your success. That's why we offer the Dorot series 90 solvent welded and threaded valves. Made from highly durable materials (uPVC), these valves are corrosion-resistant and provide reliable irrigation control and protection from water hammers.

When to choose Dorot series 90 valves:

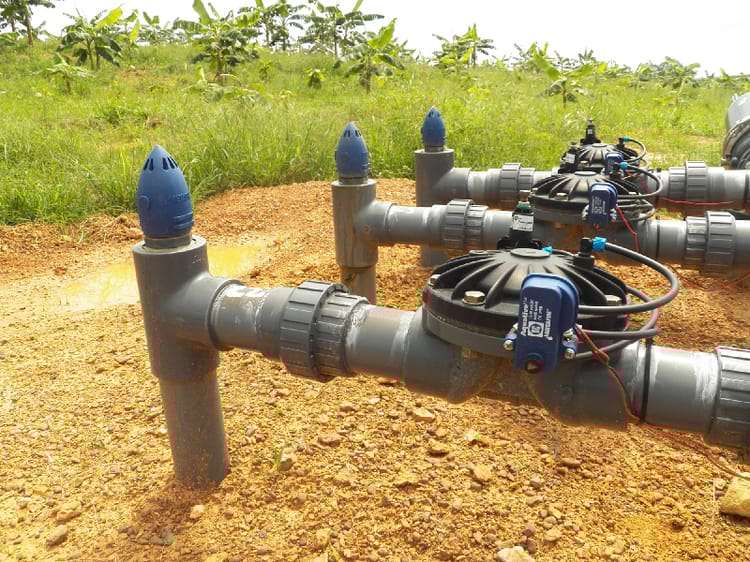

Dorot Series 90 is designed for work in the agriculture and mining sectors for irrigation systems requiring pressure for up to 10 bar. Made from corrosion-resistant materials, these valves are perfect for dealing with water containing chemicals. Dorot Series 90 valves are suitable for underground and above-ground installation in open fields and greenhouses.

What makes Dorot series 90 valves special:

Superior Performance - Excellent regulation capabilities achieved by a flexible diaphragm mechanism that is designed to allow  very low head losses at flow rates from maximal to near zero flow.

Exceptional Efficiency - Available with full selection of control functions and various end connections. The optional underground installation reduces both costs and friction losses by eliminating the use of elbow joints.

Improved Resistance - Resistance to corrosive fluids is accomplished by using high quality corrosion-free materials, both externally and internally.

Optional materials are used for protecting against highly concentrated chemicals.

Technical specifications

  • Maximum pressure – 10 bar (145 psi)
  • Minimum recommended flow – 1 m3/h (5 gpm)
  • Minimum operating pressure - 0.3 bar (4 psi)
  • Maximum operating temperature - 40°c (104°F)
Looking to learn more about Dorot series 90's hydraulic performance, dimensions and head loss?

Looking to learn more about Dorot series 90's hydraulic performance, dimensions and head loss?

Download the product page
