What is a disc filter? How does a disc filter work?

Disc filters comprise a series of grooved plastic discs stacked together. Water passes through the pores that are created by the grooves while debris and particles that are larger than the groove size are trapped along the grooves. The size of the grooves gives a filtration grade from 25 – 400 microns.Disc filters are an excellent solution for filtering surface water systems containing a high load of organic materials, algae, silt and clay.

How does a disc filter backflush work?

Activated by a predefined command (differential pressure or time), alternate units of the disc filter system go into backflush mode. The inlet valve is shut as the drain is automatically opened. During the backflush process, the compression spring is released and the pressure difference is eliminated. The spine piston rises upreleasing the pressure on the discs. Tangential jets of clean water are pumped at high pressure in the opposite direction through nozzles at the center of the spine. The discs spin free and clear, loosening the trapped solids. Solids are quickly and efficiently flushed out through the drain.

What makes the AlphaDisc superior to other disk filters?

Advanced Disc Design: Precise filtration across the full disc depth leading to High Dirt-Holding Capacity, Fewer backflush cycles, better clogging resistance, and less system disruption. Modularity: Scales with farmer needs for increased flow rates, filtration area and installation settings. Efficiency: Up to 80% lower head loss for cost-effective operation. Smart Technology: Innovative controller with remote access.

AlphaDisc™
Disc Filter

Lean & Mean Filtration Machine

AlphaDisc™ gives you ultimate irrigation system protection thanks to a combination of precise depth filtration, high dirt-holding capacity, and a unique easy-to-scale modular design that adapts with your changing flow rate or water quality needs. AlphaDisc™ also features a smart controller providing performance data at your fingertips.

AlphaDisc™ prevents clogging and partial clogging to ensure system longevity and uniformly irrigated crops, so you can enjoy better ROI, cost-saving, and peace of mind.

LEARN MORE

Advanced filtration technology - Setting new standards in water

High Efficiency, Precise Depth Filtration

Experience superior clogging protection with our uniquely designed discs that provide precise filtration across all depths.

High Dirt-Holding Capacity

Reduce maintenance and disruptions with industry-leading filtration volume, high particle capture, and fewer backflush cycles.

Hyper Modular Design

Easily scale your system as your needs evolve with AlphaDisc™’s innovative modular design.

Cost-Effective Operation

Achieve a more efficient irrigation system with low backflush flow rates and minimal head loss.

Smart Controller

Stay connected with real-time filtration data through our IP65-rated smart controller for ultimate convenience.

Compact, Space-Saving Design

Maximize your irrigation room with a vertical installation and a smaller overall footprint.

Multiple Configuration Options

Adapt effortlessly to any system setup with inline, online, and angle configuration options.

Built to Last

Enjoy long-term reliability with durable, anti-corrosive materials designed to withstand harsh environments.

The Lean & Mean Filtration Machine

Explore our line of AlphaDisc™ disc filters:

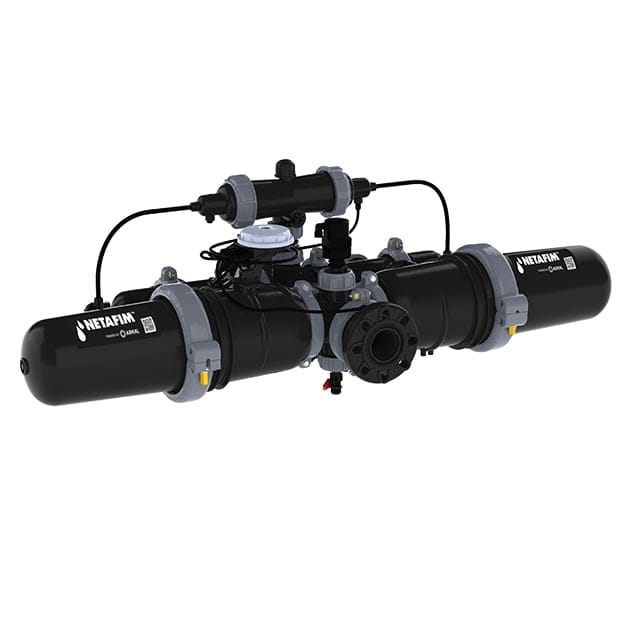

AlphaDisc™ Single XL 3’’/4’’

Flow rate:

Up to: 90 m³/h
Up to: 396 GPM

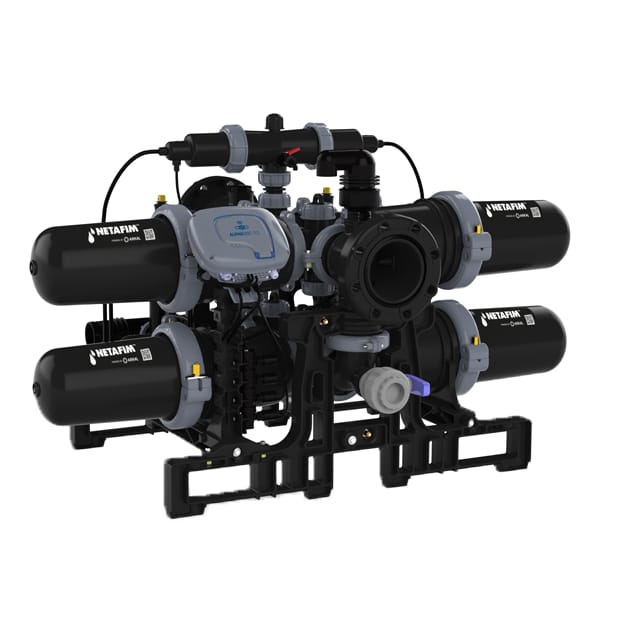

AlphaDisc™ Dual XL 6’’

Flow rate:

Up to: 180 m³/h
Up to: 792 GPM

AlphaDisc™ Trio XL 8’’

Flow rate:

Up to: 270 m³/h
Up to: 1,188 GPM

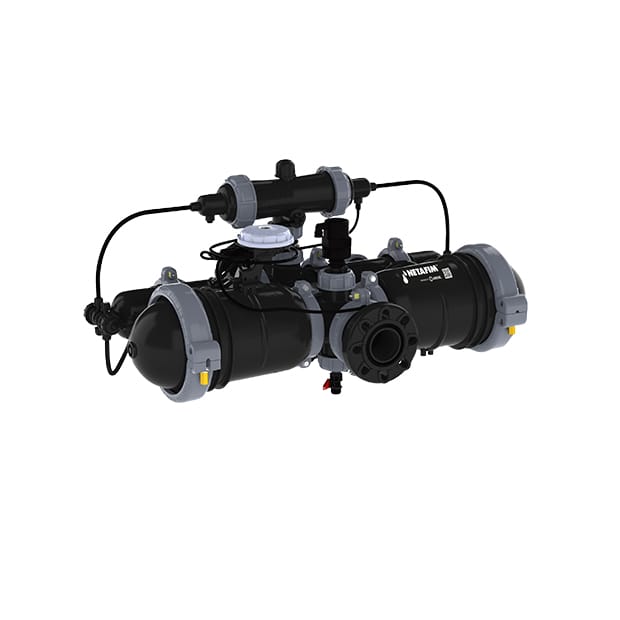

AlphaDisc™ Single 3’’

Flow rate:

Up to: 40 m³/h
Up to: 176 GPM

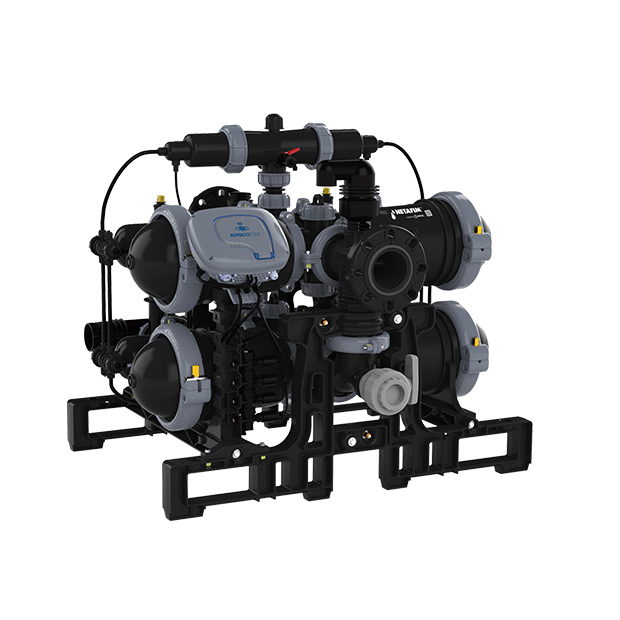

AlphaDisc™ Dual 4’’

Flow rate:

Up to: 80 m³/h
Up to: 3,52 GPM

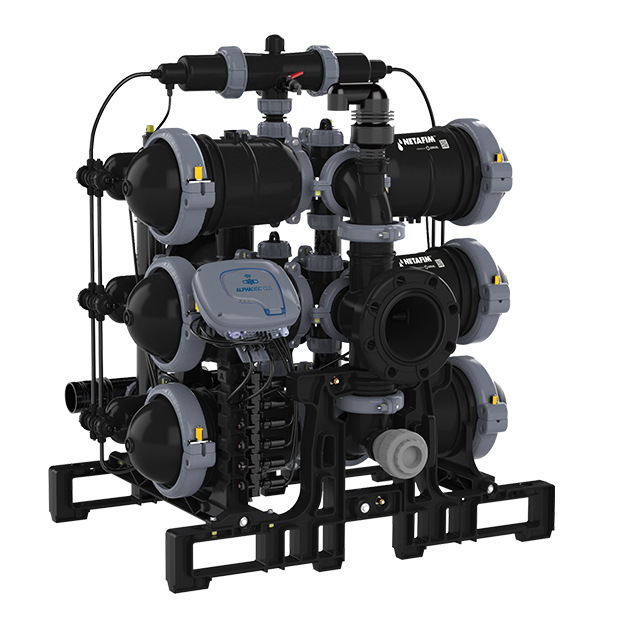

AlphaDisc™ Trio 6’’

Flow rate:

Up to: 120 m³/h
Up to: 528 GPM

AlphaDisc™ Installation and Maintenance Guides

View manual

AlphaDisc™ Filter Tutorials

Ensure optimal irrigation protection with our concise AlphaDisc™ Operation & Maintenance Tutorials

Explore the Filter Config!

Not sure which filter fits your needs? Let’s find out in 3 simple steps

Get started

Frequently asked questions

Disc filters comprise a series of grooved plastic discs stacked together. Water passes through the pores that are created by the grooves while debris and particles that are larger than the groove size are trapped along the grooves. The size of the grooves gives a filtration grade from 25 – 400 microns.

Disc filters are an excellent solution for filtering surface water systems containing a high load of organic materials, algae, silt and clay.
Activated by a predefined command (differential pressure or time), alternate units of the disc filter system go into backflush mode. The inlet valve is shut as the drain is automatically opened. During the backflush process, the compression spring is released and the pressure difference is eliminated. The spine piston rises up, releasing the pressure on the discs. Tangential jets of clean water are pumped at high pressure in the opposite direction through nozzles at the center of the spine. The discs spin free and clear, loosening the trapped solids. Solids are quickly and efficiently flushed out through the drain.
Advanced Disc Design: Precise filtration across the full disc depth leading to High Dirt-Holding Capacity, Fewer backflush cycles, better clogging resistance, and less system disruption.
Modularity: Scales with farmer needs for increased flow rates, filtration area and installation settings.
Efficiency: Up to 80% lower head loss for cost-effective operation.
Smart Technology: Innovative controller with remote access.
