Uniram AS Anti-siphon

UniRam™ AS

The ultimate long-term solution for both on and subsurface drip irrigation

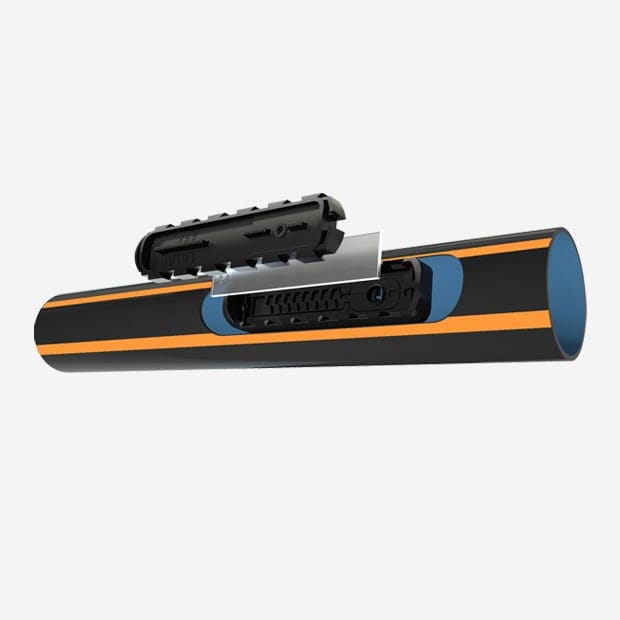

The UniRam™ AS integral PC dripperline delivers ultra-reliable uniformity in both on and subsurface drip irrigation (SDI), even in complex topographies thanks to its pressure compensating mechanism and Anti-Siphon that prevents dirt suction.

  • Anti-Siphon mechanism blocks external contaminants being drawn into the dripper, making it a critical part of buried dripperlines (SDI).



Expected Product Lifespan

  • 15 to 25 Years

Topography

  • Hilly Topography
  • Flat Topography

Dripper Type

  • Integral

Pressure Compensation

  • PC

dripperline wall-thickness

  • Heavy wall

Dripper special features

  • Anti Syphon (AS)

Surface

  • SDI (subsurface drip irrigation)

Crop type

  • Protected crops
  • Orchards
  • Field crops

Why UniRam™ AS?

  • Anti-plugging protection: Anti-Siphon mechanism prevents suction of dirt and contaminants into the dripperline during system draining - eliminating the risk of clogging, or partial clogging.
  • Uniform flow rates: The industry’s biggest filtration area and water passage, plus self-cleaning technology assures 100% uniformity of water and nutrient distribution in long laterals and in any topography.
  • Never clogs: Self-flushing system continuously flushes out debris to ensure optimal dripper performance year after year.
  • Root protection: A physical barrier stops root intrusion without the need for chemicals.
  • Long-lasting: Ultra-durable, UV-stable lines are built to resist damage from heavy machinery, soil insects, sun exposure and re-coiling.

Specifications

  • Variety of flow rates: 5 different flow rates (0.7, 1.0, 1.6, 2.3, 3.5 L/H) can address any condition or application
  • Wide range of pipe diameters: 16.0 to 23.0 mm
  • Wall thickness: 1.0 mm - 1.2 mm
  • Pressure compensating range: 0.4-5.0 bar.
  • Superb UV and chemical resistance
Specifications

Other Uniram™ models

Uniram™ CNL

Uniram™ CNL

Greenhouses, deciduous plantations and tree irrigation; permanent (15 to 25 Years) with Anti Drain mechanism.

Uniram™ HCNL

Uniram™ HCNL

Greenhouses and precise irrigation applications; permanent (15 to 25 Years) subsurface row crops; deciduous plantations and tree irrigation with Anti Drain mechanism in complex topographies.
